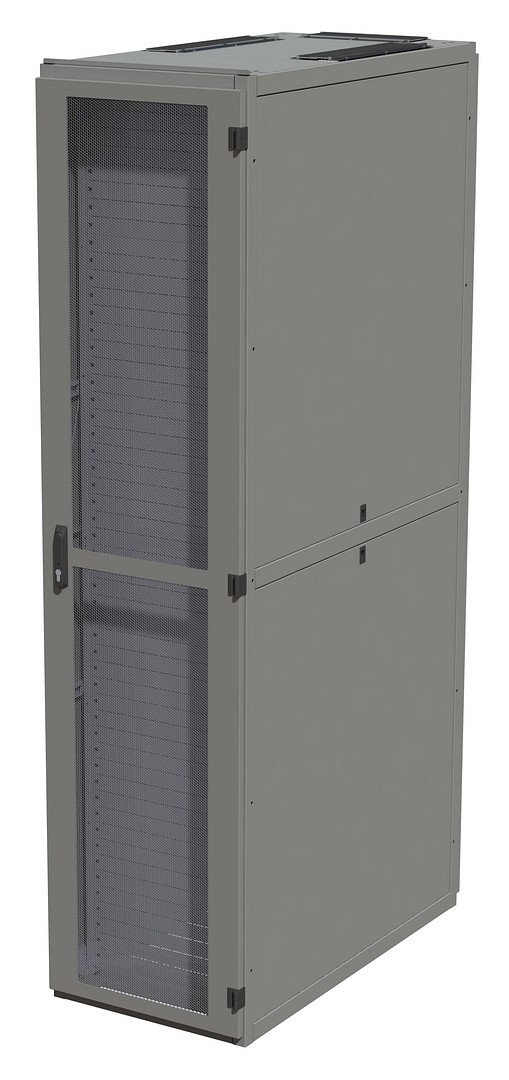

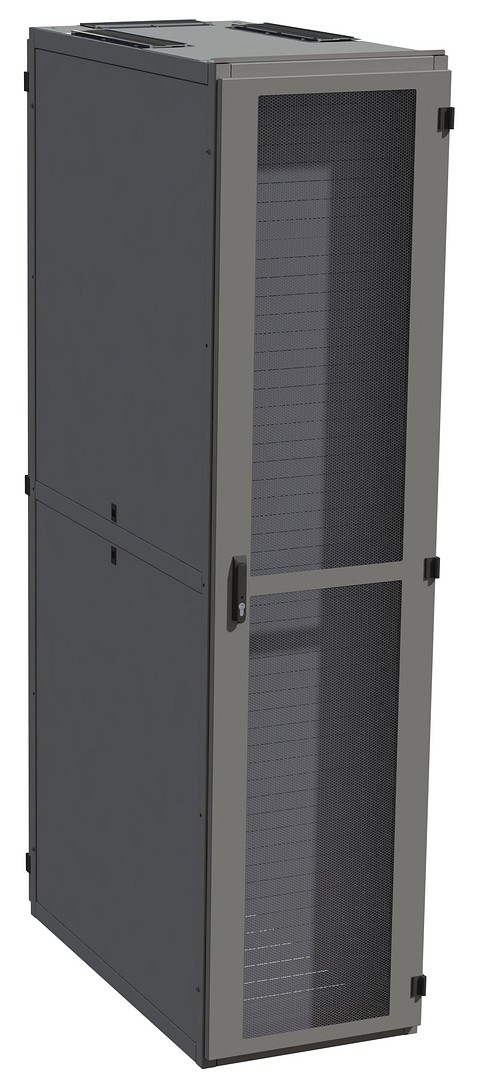

Server cabinet 52U 600x1200x2450
Tuotetunnus: LT26612
Pre assembled cabinet for data centers. Static load capacity 1500kg.
Powder-coated steel frame with 2-piece side panels. Lockable from inside. 19” rails 52U at the front and back with U-position and depth markings. Cold-hot seal on the front of the cabinet for efficient targeting of cooling air to IT equipment. Removable and lockable roof with 3 cable brush inlets. Main grounding rail 10-pcs included. Perforated door at front and rear with 3-point bar locking. Handle with Euro DIN lock housing. Vertical cable tie rails on both sides at the back. A mounting kit for lining up adjacent cabinets included
Description
19” vertical rails at the front and rear with stepless depth adjustment. U-slot and depth markings on the rails. 2nd section side walls with internal locking. Removable and internally lockable roof with 3 brush holes. Open bottom. 10-slot 83mm2 grounding rail. Mounting kit for lining up cabinets.
Cold-hot seal on the front. PVC plastic cover plate between the 19” rails, which can be shortened in 1U intervals. Perforated door at front and rear with 80% perforation, 180° opening lift hinges and 3-point locking. Euro DIN lock housing in handle. Compatible with e.g. Abloy and ILOQ electric switch locks. Height-adjustable PDU brackets at the rear for two PDU power distribution units. Vertical cable tie rails on both sides of the cabinet
Tekniset tiedot
- Width: 600 mm
- Depth: 1200 mm
- Height: 2450 mm
- Weight: 200 kg
- Väri: RAL7035 vaalean harmaa
- Avainlippu: Kyllä
