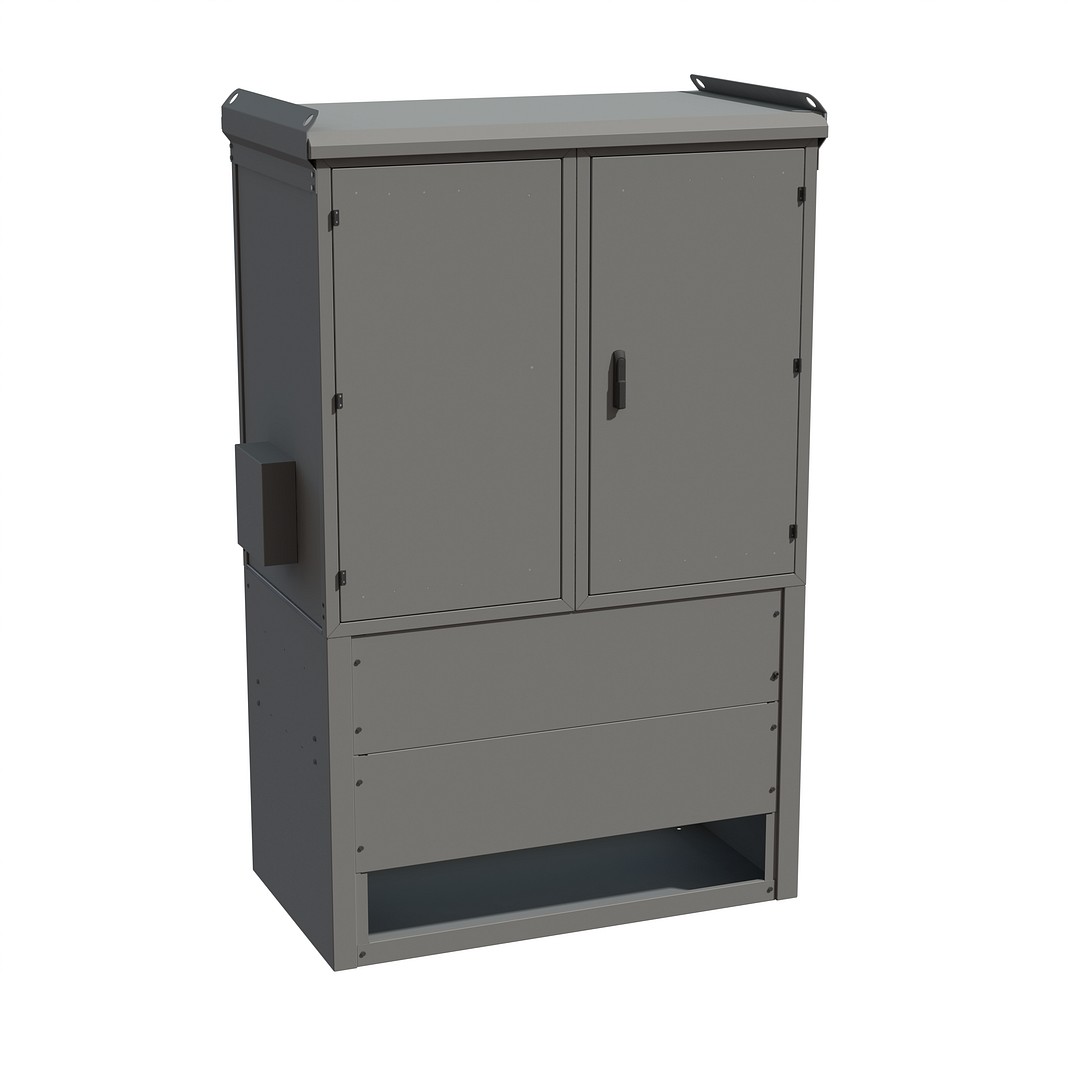

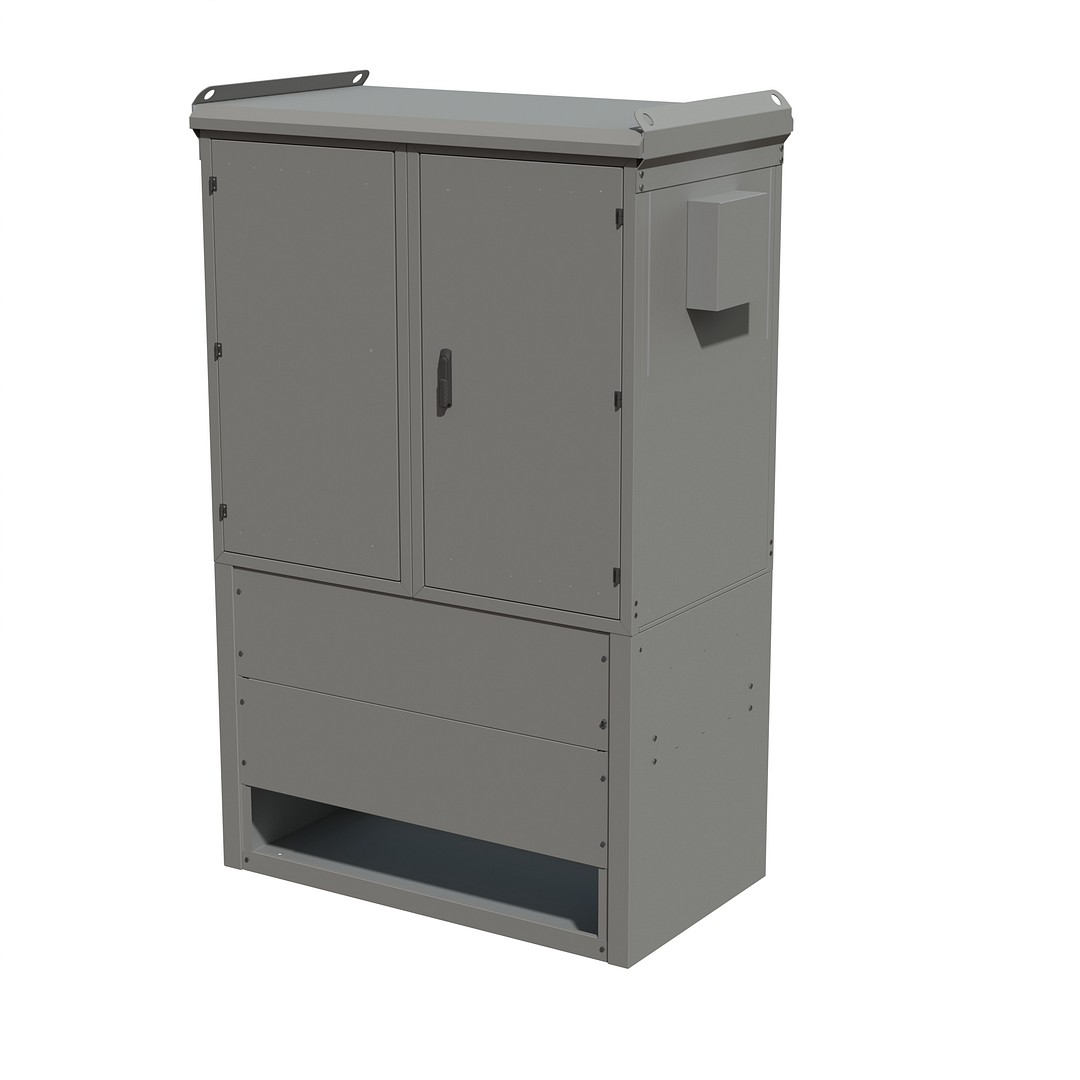

Insulated Outdoor Cabinet LARGE, Passive light gray RAL7035
Tuotetunnus: LT27043
Description
Insulated outdoor cabinet for building a telecommunications network for passive solutions. The cabinet can be equipped with, for example, fiber optic panels and splice plates as well as other passive solutions.
Doors at the front and back with adjustable 3-point locking. Metal turning handle on the doors with EuroDIN skull lock housing and padlock slot. Standard lock included. 20mm PE sheet insulation on the inside.
19″ rails 29U on both sides at the front and back with stepless depth adjustment. Total capacity 116U. Cable guide hooks on the side of the 19″ rails in vertical direction and 4 cable trays for connecting fibers between the front and rear rails. Inlet/exhaust air grilles with cleanable and replaceable filter.
4 MC16 feed-through flanges on the bottom. Mounting rail for microducts and traditional cables. 30p grounding rail. Lifting lugs.
Lähetä palautetta
Sivupaneelit
Historia
Tallennettu
Tekniset tiedot
- Width: 1545 mm
- Depth: 890 mm
- Height: 1400 mm
- Väri: RAL7035 vaalean harmaa
- Avainlippu: Kyllä
- CE-merkintä: Kyllä
- Lukko: avainlukko
- Maadoitus: maadoitus
