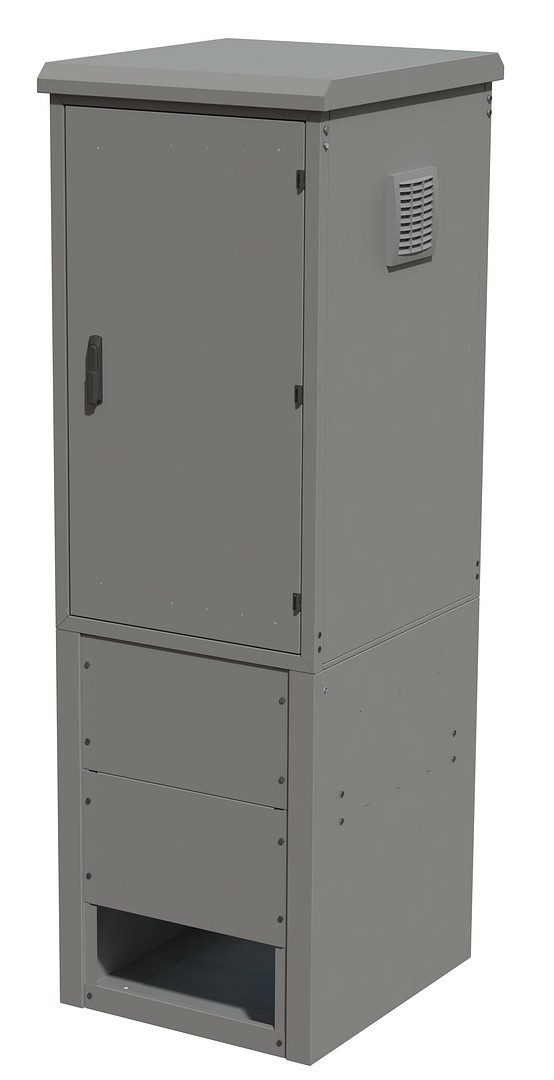

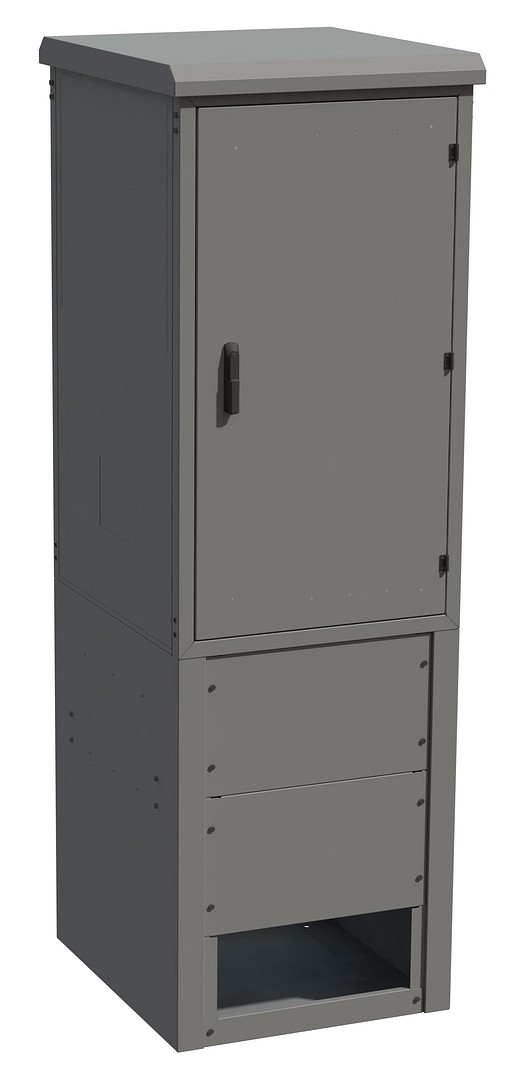

Insulated outdoor Cabinet MEDIUM with fan and no Power Metering
Tuotetunnus: LT26822
Sähkönumero: 7271523
Solid,useful and modular design in 3rd generation cabinets fullfill demands and requirements in both high and low temperatures .
Inside temperature of the cabinet stays stable using fans , cooling and heating units depending of customer needs
Description
•Medium width 790mm x Depth 890mm x Height 1400mm
•Plinth Height 1000mm
•Material: Galvanized sheet metal
Finishing: Powder coated RAL7035. Also colors RAL7037, RAL7024, RAL7016, RAL7008 and RAL6009 available
Construction: Solid sheet metal frame with20mm PE-insulation inside. Lifting kit
Vertical rails: 19” vertical rails 29U front and back with portable adjustability. Total equipment space 58U (Medium) or 116U (Large). Cable rings on the side of the rails and front-to-back cable channels included
Doors: Insulated front and rear doors with three-point locking system. Swing handle with EuroDIN-profile standard lock and latch for external padlock
Cabling inlets: Multigatecable entry plates at bottom 2pcs (Medium)
Grounding: Grounding rail –kit inside the cabinet.
Stock colors : Light Grey RAL7035, Dark Grey RAL7037, Graphite Grey RAL7024, Anthrasite Grey RAL7016, Khaki Grey RAL7008 tai Pruce Green RAL6009
Tekniset tiedot
- Width: 790 mm
- Depth: 890 mm
- Height: 1400 mm
- Väri: RAL7035 vaalean harmaa
- Avainlippu: Kyllä
