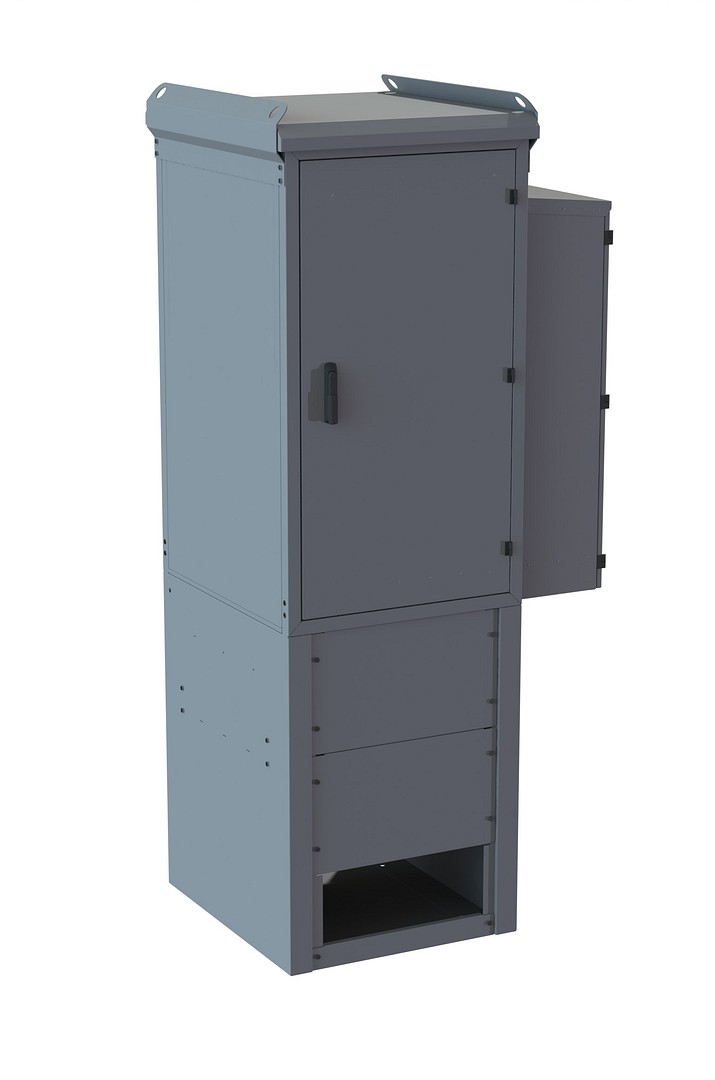

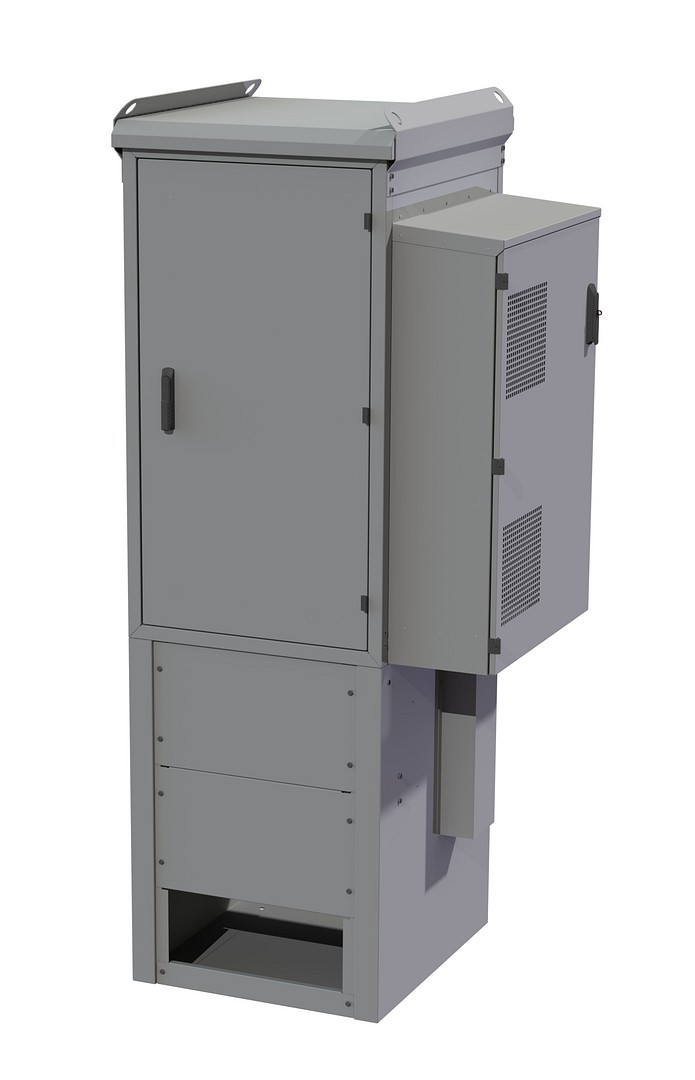

Outdoor cabinet MEDIUM with cooling unit, power system and battery string

Description

Insulated outdoor cabinet for building a telecommunications network. The cabinet can be used to install traditional and microduct optical cables as well as active devices. Also suitable as a distribution cabinet for general cabling in the yard.
Measuring center with space and wiring for electricity meter, AL/Cu 50mm2 input connectors, main switch and fuses 25A, backup power supply connection (device socket 5-pole 32A), circuit breakers 6x16A+2x10A, 2 service sockets with residual current protection 30mA. Doors at the front and back with adjustable 3-point locking. Metal turning handle on the doors with EuroDIN skull lock housing and slot for 2mm wire seal. Standard lock included. 20mm PE sheet insulation on the inside.
19” rails 29U front and rear with stepless depth adjustment. Total capacity 58U. Cable management hooks on the side of the front rails and cable duct for connecting fibers between the front and rear rails. Cooling unit 1kW and 400W heater. Preset for heating +10C and cooling +25C (adjustable). 2-way socket for internal devices in the cabinet with residual current protection 30mA. 2x MC16 feed-through flanges on the bottom. Mounting rail for microducts and traditional cables. 15pcs grounding rail. Lifting lugs. Protective duct for power supply.
-48VDC distribution rail with 11x6A circuit breakers. Power unit Power System DPS 850B-48-3. Pre-wired for distribution rail and battery. Battery 4x Marathon M12V60FT+battery tray
